📝 REST API 란 ?
REST API : REST 기반으로 서비스 API(Application Interface) 를 구현한 것을 REST API 라고 한다.
[Flask] (2) REST & HTTP Method & API/End Point
📝 REST란 무엇인가 ? REST : Representational State Transfer = 자원을 이름(자원의 표현)으로 구분하여 해당 자원의 상태를 주고 받는 것을 의미한다. = 즉, 자원(resourece) 의 표현(representation)에 의한 "..
youngminieo1005.tistory.com
최근 OpenAPI (누구나 사용할 수 있도록 공개된 API), 마이크로 서비스 등을 제공하는 기업에서는 대부분 REST API를 제공한다.
💡 REST API 특징
REST 기반으로 시스템을 분산하여 확장성과 재사용성을 높여 유지보수를 편리하게 할 수 있다.
REST는 HTTP 표준을 기반으로 구현하고, HTTP를 지원하는 프로그램 언어로 클라이언트,서버를 구현할 수 있다.
따라서, REST API를 구현하면, 클라이언트 뿐만 아니라, JAVA, C#, WEB 등을 이용해서 클라이언트를 제작할 수 있다.
💡 REST API 규칙
REST에서 가장 중요한 기본적인 규칙은 두 가지이다. URI는 자원을 표현하는 데 집중학, 행위에 대한 정의는 HTTP Method를 통해 하는 것이 REST API를 설계하는 핵심이다.
1. URI는 정보의 자원을 표현해야 한다.
리소스명은 동사보다는 명사를 사용한다.
URI는 자원을 표현하는 데에 중점을 두어야한다.
GET같은 행위에 대한 표현이 들어가서는 안된다.
GET /getTodos/3
GET /todos/show/3
GET /todos/3
2. 자원에 대한 행위는 HTTP Method(GET, POST, PUT, DELETE 등)으로 표현한다.
주로 5가지의 Method(GET, POST, PUT, DELETE , PATCH)를 사용해서 CRUD를 구현한다.
[ 출처 : elice ]
GET /todos/delete/3
DELETE /todos/3
📝 RESTful 이란 ?
RESTful은 일반적으로 REST라는 아키텍처를 구현하는 웹 서비스를 나타내기 위해 사용되는 용어이다.
따라서 REST API를 사용하는 웹 서비스를 우리는 "RESTful하다"고 할 수 있다.
RESTful은 REST를 REST답게 쓰기 위한 방법으로 누군가가 공식적으로 발표한 것이 아니다.
REST의 원리를 따르고 사용하는 시스템을 RESTful이라는 용어로 칭하게 된다.
💡 RESTful의 목적은 무엇인가 ?
이해하기 쉽고 쉬운 REST API를 만드는 것이다.
RESTful한 API를 구현하는 근본적인 목적이 성능 향상이 중점이 아니다.
API의 이해도와 호환성을 높이는 것이 주된 목적이다.
따라서, 성능이 중요한 상황에서는 굳이 RESTful한 API를 구현할 필요가 없다.
📝 REST API 설계 기본 규칙
1. URI는 정보의 자원을 표현해야 한다.
자원은 동사보다는 명사를 사용
자원은 대문자보다는 소문자 사용
자원의 도큐먼트 이름으로는 단수 명사를 사용
자원의 컬렉션 이름으로는 복수 명사를 사용
자원의 스토어 이름으로는 복수 명사를 사용
GET /Student/3
GET /students/3
2. 자원에 대한 행위는 HTTP Method(GET, POST, PUT, DELETE 등)로 표현한다.
- URI에 HTTP Method가 들어가면 안된다.
GET /students/delete/3
DELETE /students/3
- CRUD 기능을 나타내는 것은 URI에 사용하지 않는다.
GET /students/show/3
GET /students/insert/4
GET /students/3
POST /students/4
: id 는 하나의 특정 자원을 나타내는 고유값이다. ex) student를 생성하는 route : POST/students ex) id=12인 student를 삭제하는 route: DELETE/students/12
🔊 용어
도규먼트 : 객체 인스턴스나 데이터베이스 레코드와 유사한 개념
컬렉션 : 서버에서 관리하는 디렉터리라는 자원
스토어 : 클라이언트에서 관리하는 자원 저장소
📝 REST API 설계 규칙
1. 슬래시 (/) 는 계층 관계를 나타내는 데 사용한다. ex) https://academy.elice.io/classroom/teach
2. URI 마지막 문자로 슬래시 (/) 를 포함하지 않는다. ex) https://academy.elice.io/classroom/teach/ ← ( X )
URI에 포함되는 모든 글자는 자원의 유일한 식별자로 사용되야 한다.
URI가 다르다는 것은 불러오는 자원이 다르다는 뜻이고, 반대로 자원이 다르면 URI도 달라져야 한다.
REST API는 분명한 URI를 만들어 통신을 해야 하기 때문에 혼동을 주지 않도록 URI 경로의 마지막에는 슬래시 (/) 를 사용하지 않는다.
3. 하이픈 (-) 은 URI 가독성을 높이는데 사용한다.
4. 밑줄 ( _ ) 은 URI에 사용하지 않는다.
5. URI 경로에는 소문자를 사용한다.
6. 파일확장자는 URI에 포함하지 않는다.
ex) https://academy.elice.io/classroom/teach/111/python.png ← ( X ) ex) GET / classroom/teach/111/python HTTP/1.1 Host: academy.elice.io Accept: image/png ← ( O )
7. 자원 간에 연관 관계가 있는 경우 다음과 같이 작성한다.
/자원명/자원ID/관계가 있는 다른 자원명 ex) GET : /students/{studentid}/classroom
[ 출처 : elice ]
📝 REST API : CRUD 구현해보기
앞선 포스팅 ( Flask 1~ 6 )을 보면, render_template( ) 메소드를 이용해서, html에 출력 결과를 띄워 값들을 확인했었다.그리고 html에서는 jinja2 문법으로 해당 내용을 받아서 html에 띄울 수 있었다.
하지만, 이는 "API 서버"를 개발한 것이 아닌, Flask를 활용해서 "웹 어플리케이션"을 개발한 것이다.
REST API 서버를 개발 할 때는, 서버단에서 직접 렌더링(Rendering)해서 페이지를 보여주는 것이 아니라 웹 페이지를 구성하는데 필요한 "정보를 반환" 해주도록 구현해야 한다.
따라서, 백엔드 서버는 클라이언트(프론트 엔드) 와 데이터를 주고 받음으로써 통신을 하게 되는 것이다.
🔊 웹 상에서 가장 많이 쓰이는 데이터 형식은 JSON 형식의 데이터를 주고 받는다.
🔊 [Tips] REST API를 위해 구현되는 CRUD의 메소드와 URL의 이름은 CRUD에 맞추는 것이 일반적이다.
from flask import Flask, render_template, request, redirect, url_for
import json
app = Flask(__name__)
board = []
@app.route('/')
def index () :
return render_template("Boards.html" , rows = board)
@app.route("/create", methods=["POST"])
def create () :
name = request.form["name" ]
context = request.form["context" ]
board.append([name,context])
return json.dumps( { "status" :200 , "result" : { "id" : len(board)} } )
@app.route("/read", methods=["GET"])
def read () :
return json.dumps({"status" :200 , "result" :board})
if __name__ == '__main__' :
app.run()
<!doctype html>
<html lang ="ko" >
<head >
<meta charset ="UTF-8" >
<meta name ="Generator" content ="EditPlus®" >
<meta name ="Author" content ="" >
<meta name ="Keywords" content ="" >
<meta name ="Description" content ="" >
<title > 게시판 등록</title >
<style type ="text/css" >
body { text-align : center; }
</style >
</head >
<body >
<h1 > 게시판</h1 >
<h4 > 추가</h4 >
<form action = "/create" method = "POST" >
이름<br >
<input type = "text" name = "name" /> <br >
내용<br >
<textarea name = "context" cols ="50" rows ="10" > </textarea > <br > <br >
<input type = "submit" value = "게 시" /> <br >
</form >
<h4 > 목록보기</h4 >
<table class ="table" border ="1" width = 600 style = "word-break:break-all" style ="table-layout: fixed" align ="center" >
<thread >
<th width ="4%" > 목차</th >
<th width ="15%" > 이름</th >
<th width ="25%" > 내용</th >
</thread >
{% for row in rows %}
<tr >
<td > {{ loop.index }}</td >
<td > {{ row[0] }}</td >
<td > {{ row[1] }}</td >
</tr >
{% endfor %}
</table >
</body >
</html >
💡 CREATE : POST
페이지에서 데이터 입력
입력된 값을 json 형태로 변환한것을 반환한 결과
💡 READ : GET
/read 로 GET 했을 때 ( 데이터 하나도 입력 안한상황 )
📌 UPDATE(PUT)와 DELETE(DLEDTE)는 앞선, CREATE(POST), READ(GET)과 달리, Ajax를 이용해서 구현되기도 한다.

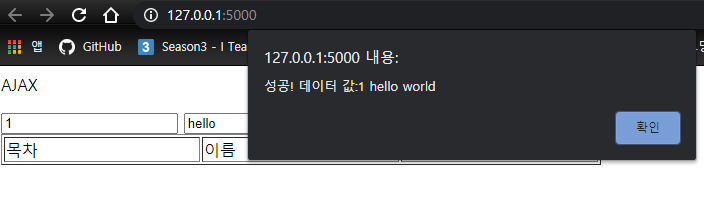

📝 Ajax : 비동기식(Asynchronous) JavaScript + XML 이다.
Ajax 는 REST API를 손쉽게 구현하기 위해 사용되는 "프레임워크"이며, html 파일에서 간단히 사용하는 방법을 해보자. ( 이번에는, html 파일을 더, 주의깊게 보자. ( Ajax 부분 ) )
from flask import Flask, render_template, request, jsonify
app = Flask(__name__)
board = []
@app.route("/")
def index () :
return render_template("ajax_index.html" , rows=board)
@app.route("/ajax", methods=["POST"])
def ajax () :
data = request.get_json()
board.append(data)
return jsonify(result="success" , result2=data)
if __name__ == '__main__' :
app.run()
<html >
<head >
<script src ="https://code.jquery.com/jquery-latest.min.js" > </script >
</head >
<body >
<p id ="example" > AJAX</p >
<input type ="text" id ="id1" placeholder ="id" >
<input type ="text" id ="name1" placeholder ="name" >
<input type ="text" id ="context1" placeholder ="context" >
<input type ="button" id ="execute" value ="execute" >
<script >
$('#execute' ).click(function ( ) {
var id = $('#id1' ).val();
var name = $('#name1' ).val();
var context = $('#context1' ).val();
var postdata = {
'id' : id, 'name' : name, 'context' : context
}
$.ajax({
type : 'POST' ,
url : '{{url_for("ajax")}}' ,
data : JSON .stringify(postdata),
dataType: 'JSON' ,
contentType : "application/json" ,
success : function (data ) {
alert('성공! 데이터 값:' + data.result2['id' ] + " " + data.result2['name' ] + " " + data.result2['context' ])
},
error : function (request, status, error ) {
alert('ajax 통신 실패' )
alert(error);
}
})
})
</script >
<table border =1 width ="600" >
<thead >
<td > 목차</td >
<td > 이름</td >
<td > 내용</td >
</thead >
{% for row in rows %}
<tr >
<td > {{ loop.index }}</td >
<td > {{ row['name'] }}</td >
<td > {{ row['context'] }}</td >
</tr >
{% endfor %}
</table >
</body >
</html >
💡 UPDATE & DELETE ( PUT & DELETE )
from flask import Flask, render_template, jsonify, request
app = Flask(__name__)
board = [{"id" : 1 , "name" : "elice" , "context" : "test" }]
@app.route('/')
def index () :
return render_template('index.html' , rows = board)
@app.route('/create', methods=['POST'])
def create () :
data = request.get_json()
board.append(data)
return jsonify(result = "success" , result2= data)
@app.route('/delete', methods=['POST'])
def delete () :
del board[-1 ]
return jsonify(result="success" )
@app.route('/put', methods=['POST'])
def put () :
data = request.get_json()
board.append(data)
return jsonify(result="success" ,result2=data)
<html >
<head >
<script src ="https://code.jquery.com/jquery-latest.min.js" > </script >
</head >
<body >
<p id ="example" > AJAX</p >
<input type ="text" id ="id1" placeholder ="id" >
<input type ="text" id ="name1" placeholder ="name" >
<input type ="text" id ="context1" placeholder ="context" >
<input type ="button" id ="create" value ="create" >
<input type ="button" id ="update" value ="update" >
<input type ="button" id ="delete" value ="delete" >
<script >
$('#create' ).click(function ( ) {
var id = $('#id1' ).val();
var name = $('#name1' ).val();
var context = $('#context1' ).val();
var postdata = {
'id' :id, 'name' :name, 'context' :context
}
$.ajax({
type : 'POST' ,
url : '{{url_for("create")}}' ,
data : JSON .stringify(postdata),
dataType : 'JSON' ,
contentType : "application/json" ,
success : function (data ) {
alert('성공! 데이터 값:' + data.result2['id' ]+" " + data.result2['name' ]+ " " + data.result2['context' ])
},
error : function (request, status, error ) {
alert('ajax 통신 실패' )
alert(error);
}
})
})
$('#update' ).click(function ( ) {
var id = $('#id1' ).val();
var name = $('#name1' ).val();
var context = $('#context1' ).val();
var postdata = {
'id' :id, 'name' :name, 'context' :context
}
$.ajax({
type : 'POST' ,
url : '{{url_for("put")}}' ,
data : JSON .stringify(postdata),
dataType : 'JSON' ,
contentType : "application/json" ,
success : function (data ) {
alert('성공! 수정된 데이터 값:' + data.result2['id' ]+" " + data.result2['name' ]+ " " + data.result2['context' ])
},
error : function (request, status, error ) {
alert('ajax 통신 실패' )
alert(error);
}
})
})
$('#delete' ).click(function ( ) {
$.ajax({
type : 'POST' ,
url : '{{url_for("delete")}}' ,
contentType : "application/json" ,
success : function ( ) {
alert('성공! 데이터 삭제 완료' )
},
error : function (request, status, error ) {
alert('ajax 통신 실패' )
alert(error);
}
})
})
</script >
<table border =1 width ="600" >
<thead >
<td > 목차</td >
<td > 이름</td >
<td > 내용</td >
</thead >
{% for row in rows %}
<tr >
<td > {{ loop.index }}</td >
<td > {{ row['name'] }}</td >
<td > {{ row['context'] }}</td >
</tr >
{% endfor %}
</table >
</body >
</html >
